제품 상세 정보:
|
| 플라스틱 가공: | 애완 동물 달아서 | 나사 직경(mm): | 110mm |
|---|---|---|---|
| 생산능력: | 225-500kgs/H는 주문을 받아서 만들어질 수 있습니다 | 보증: | 1년 |
| 압출 스트랩 수: | 3 | 적용범위: | 벽돌 공장, 금속, 철강, 알루미늄, 양조장 |
| 스크린 체인저: | 이중 실린더 / 단기통 | 두께 범위: | 0.4-1.2mm |
| 폭 범위: | 9-32mm | 적용 가능한 원료: | 병 플레이크 소재, 100% 깨진 재료 |
220-250kg/H Pet Strapping Strap Band Making Machine with PLC Control with Multi-Spec Storage
The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Parameters of PET strap production machine
| Model | Capcity (kg/h) | Strap Size | Power(kw) | Manpower |
| JT-PET90 | 220-250KG/H | 9-32mm | 85 | 1-2 |
| JT-PET110 | 300-330KG/H | 9-32mm | 100 | 1-2 |
| JT-PET125 | 400-450KG/H | 9-32mm | 110 | 1-2 |
| JT-PET130 | 480-500KG/H | 9-32mm | 200 | 1-2 |

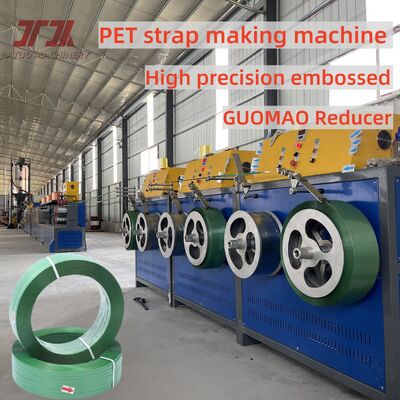

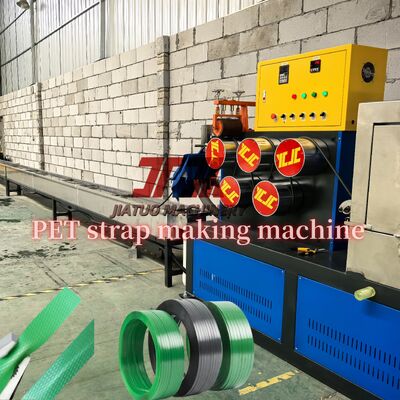

Part of JIATUO PET strap making machine

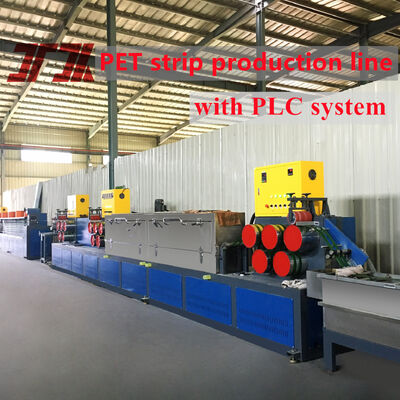

Equipped with a PLC system supporting up to 99 specifications, suitable for continuous production with frequent changeovers. Maintains process consistency across strap widths (5–19 mm) and thicknesses (0.3–1.2 mm).
Stable Dimension Control Mechanism
The combination of a five-roller traction system and a circulating cooling system helps maintain consistent strap dimensions:
This design reduces dimensional variation caused by material inconsistency.
Food & Beverage Industry
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 120kg/hr, 260kg/hr, 380kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-19mm; Thickness: 0.3-1.2mm;
* What about the installation power of the PP strap machine? 60kw/80kw/90kw/110kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
