제품 상세 정보:
|
| 이름: | 기계를 만드는 PET 스트랩 | 나사 모델: | 100*2800mm |
|---|---|---|---|
| 생산능력: | 300-500kgs/H | 보증: | 1년 |
| 압출 스트랩 수: | 3 | 적용범위: | 벽돌 공장, 금속, 철강, 알루미늄, 양조장 |
| 스크린 체인저: | 이중 실린더 / 단기통 | 두께 범위: | 0.4-1.2mm |
| 폭 범위: | 9-32mm | 적용 가능한 원료: | 병 플레이크 소재, 100% 깨진 재료 |
PET Strapping Production Equipment 9-25mm PET Strap Making Machine for PLC Control System
PRODUCT DESCRIPTION :
PET strapping production equipment is a high-speed, environmentally friendly extrusion machine that can produce PET strapping with a width of 9-32mm. The finished PET strapping is an environmentally friendly polymer material widely used in packaging and bundling. Its excellent comprehensive performance has gradually replaced traditional steel strapping and PP strapping, making it the preferred bundling material for heavy industries such as logistics, chemicals, building materials, glass, chemical fibers, brick factories, and aluminum.
KEY FEATURES:
Dedicated PET Screw------Features powerful plasticization and high extrusion output; compatible with both PET bottle flakes and recycled materials, ensuring a uniform and stable melt.
Intelligent Temperature Control------ Equipped with an intelligent constant-temperature system featuring real-time data display; prevents raw material scorching caused by excessive heat, thereby maintaining premium product quality.
Precise Stretching------ Achieves a stretching ratio of 4.5–6.5 times, resulting in highly oriented molecular chains, superior tensile strength, high fracture resistance, and excellent aging resistance.
Tension Control------- Utilizes high-precision tension sensing throughout the entire process to ensure uniform strap thickness, minimal dimensional tolerance, no lateral deviation, and no slackness, delivering exceptional toughness.
EXTRUSION PARAMETERS TABLE
| Name | PET strap making machine |
| Applicable raw materials | Bottle flake material, 100% broken material |
| Number of screws | Single Screw ( 38CrMoALA) |
| Screw size | Ø100*2800 |
| Number of extruded belts | 3 |
| Width range | 9-32mm |
| Thickness range | 0.4-1.2mm |
| Production capacity | 300-350kg/h (according to the weight of each meter) |
| Metering Pumps | 100CC |
Regarding the Environmental Impact of the Machine:
PET strapping uses safe and environmentally friendly raw materials, making operation and recycling more convenient.
No Sharp Edges----- Soft texture, unlike steel strapping, it avoids scratches to operators and will not damage the surface of packaged goods (such as sheets, profiles, cartons, etc.). Lightweight and easy to handle: With a density of only 1.38g/cm³, about 1/6 that of steel strapping, it is lighter for the same length, requiring less effort when manually binding and reducing the load on the equipment when used with a strapping machine.
Energy Consumption-----The PET strapping machine offers advantages such as high output and low energy consumption; the new process equipment can save over 30% on electricity costs.
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding

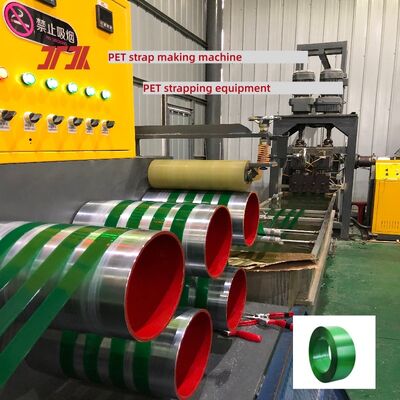

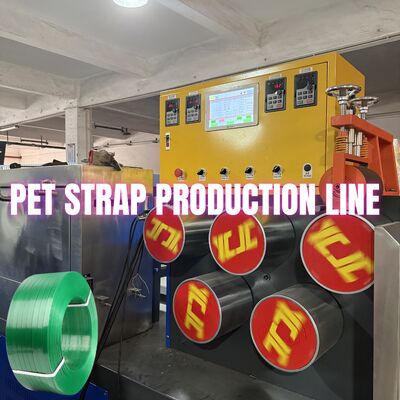

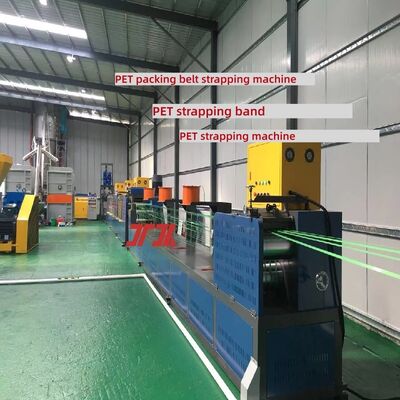

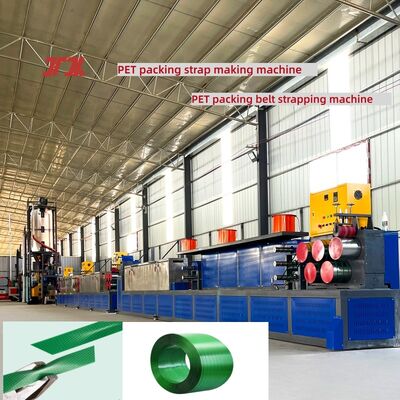

Product Showcase:
1.Are you manufacturer or trading company?
2.China is far from our country, if our machine have any question that what would you do it?
We have a warranty by one year, we will conduct a chatting online with you to solve the question if have any question, and we will send the new one to change, if we find the question of the machine is other spare parts was damaged.
By the way our machine of the quality is the best one, we are confident in saying that you can using it without any question over 10 years,we have great after-sales service.
3.If we buy your machines, can you offer us wear-out spare parts?
We will provide some wear-out spare parts free of charge, it will send to you with the machine.
4.How am I suppose to trust you the machine I received matches your description?
Appearance of final products may differ from pictures shown, but we can make sure each component and technical parameters remains the same as quoted, we also provide videos of whole traceable production process if necessary.
