제품 상세 정보:
|
| 플라스틱 가공: | 애완 동물 | 나사 직경 (mm): | 100mm |
|---|---|---|---|
| 생산 능력: | 250-280kg/H | 보증: | 1 년 |
| 압출 스트랩 수: | 3 | 응용 프로그램 범위: | 벽돌 공장, 금속, 철강, 알루미늄, 양조장 |
| 화면 필터: | 이중 실린더 / 단기통 | 두께 범위: | 0.4-1.2mm |
| 너비 범위: | 9-32mm | 적용 가능한 원료: | 병 플레이크 소재, 100% 깨진 재료 |
| 제어 시스템: | PLC 중국어/영어 제어 시스템 | 히터 전원: | 220V, 50HZ, 6 KW/ 세트 |
| 모터: | Simens | 인버터: | 투자 |
| 탑 능력을 미리 건조하기: | 4000L | 나사 디자인: | 단일 스크류 |
| 온도 제어: | 대만 포텍 | 스위치와 다르 전기적입니다: | 슈나이더 |
High-speed PET strapping machine 9-25mm PET strapping equipment with strong stretching multiples
PRODUCT DESCRIPTION OF PET STRAPPINE MACHINE

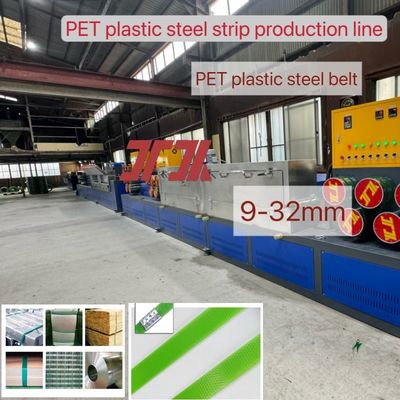

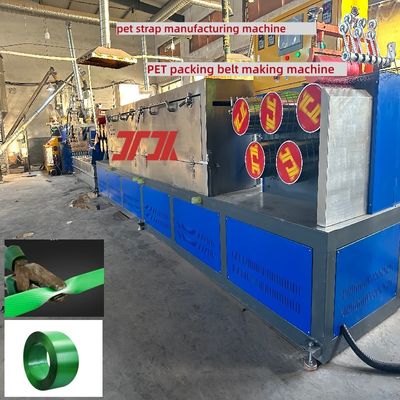

PET plastic-steel strapping equipment is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process including melting, extrusion, stretching, shaping, and winding. PET plastic-steel strapping is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials due to its high strength, corrosion resistance, aesthetic appeal, and recyclability.
Features
1. Tensile strength ----PET packing belt production line has the tensile strength of steel tape, good ductility and better impact resistance. It is not easy to break, which can ensure the safety of product transportation.
2. small elongation ----PET plastic steel belt is a kind of bundling products, its elongation change is very small, its elongation is only 1/6 of polypropylene, it can keep the tension, and make its elongation no longer change after packing.
3. Strong temperature resistance ----PET Plastic Steel Belt has the characteristics of high temperature resistance, cold resistance, etc. The melting point of PET strapping is about 260℃, which can be used for a long time without deformation under the environment of 120℃, and has good stability.
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET packaging belt production line Process Flow
① feeding→② mixing raw materials→③ raw material pre-drying→④ vacuum dehumidification of raw materials→⑤ raw materials melting extrusion→⑥ material embryo expression(with embryo) cooling molding→⑦oven preheating→⑧first stretching→⑨second stretching→⑩embossing→⑪ oven tempering to set the shape→⑫ cooling → ⑬winding(finished product)
Why do we need to add PET toughening agent to PET plastic steel belt? What is the role of toughening agent?
THE MAIN FOLE OF PET TOUGHENING AGENT:
Improve impact resistance------By increasing the toughness of PET, it reduces its brittle fracture when impacted.
Improve processing performance------Reducing processing temperature, reducing energy consumption, and improving fluidity to make processing smoother.
Enhance flexibility-------Make PET material softer and suitable for application scenarios that require flexibility.
Improve heat resistance-------Some toughening agents can improve the heat resistance of PET, allowing it to maintain stable performance at high temperatures.

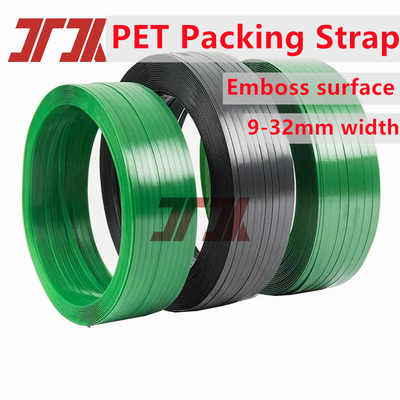

PET strapping finished products

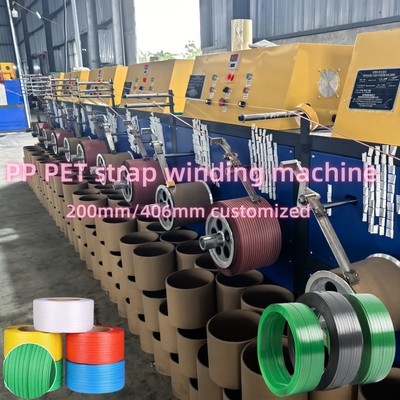

As you can see that the PET strapping can be available in different colors with different patterns, or can be printed with your company logo or any logo you want to display according to your requirements, the different colors depend on the color masterbatch you use. And we are using constant force winding system with unique design parameters in our machine, which meets high output, excellent winding effect and flat and beautiful on both sides.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
