제품 상세 정보:
|
| Product type: | PET Strap Making Production Line | Raw material: | PET Flakes Or 100% Recycled Material |
|---|---|---|---|
| PET Strap Width: | 9-32mm | PET thickness Range: | 0.6-12mm |
| Capacity: | 350-600kg/h | Motor: | Siemens |
| Driven Type: | Electric | Voltage: | According To Customer's Factory |
| Product Color: | Green/Pink/yellow/black | Application: | Packaged Material |
| After-sales service provided: | Video technical support, Online support | Warranty: | 1 Year |

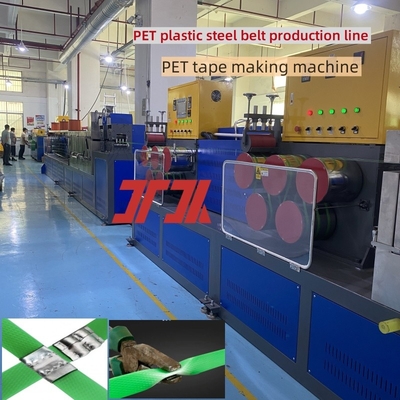

Plastic machinery High speed PET belt making machine PET plastic steel belt production line for PLC touch screen control
PRODUCT DESCRIPTION
Extrusion scre-----The extruder of the PET plastic steel belt production line adopts a PET special screw with a unique parameter design. The screw has a unique separation and mixing effect, which ensures the uniform plasticization of the raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, and high wear resistance.
Filter-----Three-dimensional foldable large-area filter device, the unfolded area of the filter is 30 times larger than the traditional flat filter area; the filter mesh can reach 80 meshes, and the unique screen changing device greatly reduces the screen changing time and improves work efficiency.
Dehumidifier------ The rotary honeycomb dehumidification and drying system is used to dry the raw materials. The dew point of -50℃ ensures that the moisture content of the raw materials is ≤50PPM, and it also has the effect of solid phase polycondensation and viscosity increase.
PRODUCT DESCRIPTION
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
Features of Plastic Strapping
The main functions of PET toughening agents:
Improve impact resistance---By increasing the toughness of PET, it reduces its brittle fracture when impacted.
Improve processing performance------Reduce processing temperature, reduce energy consumption, and improve fluidity to make processing smoother.
Enhance flexibility-------Make PET materials softer and suitable for application scenarios that require flexibility.
Improve heat resistance-------Some toughening agents can improve the heat resistance of PET, allowing it to maintain stable performance at high temperatures.
After-sales service
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
