제품 상세 정보:
|
| 생산 자재: | PP 재활용 재료 | 스트랩 수: | 4 스트랩 |
|---|---|---|---|
| 너비: | 5-19mm | 압출 용량: | 230-260kg/H |
| 나사 모델: | 110 | 스크린 체인저: | 자동 또는 매뉴얼 |
| 생산능력: | 230-260kg/H | 색상: | 파란색과 회색 |
| 두께: | 0.3-1.2mm | 전압: | 380V(고객 요구에 따라) |

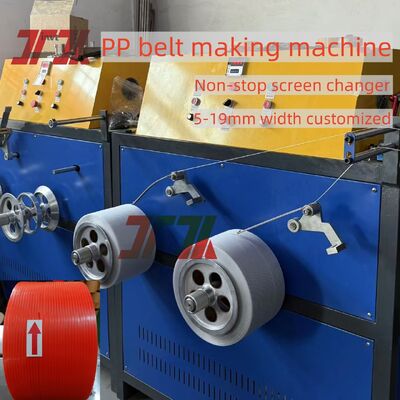

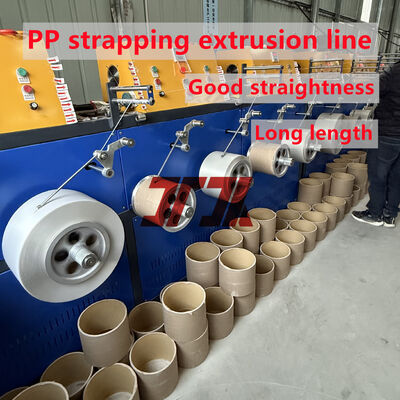

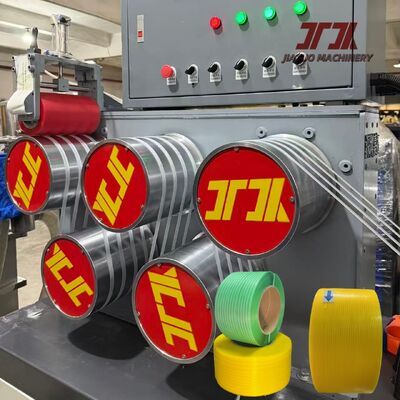

230-260Kg/h Pp 4 Strap Output Production Line Extrusion Machine 220-300m/min Line Speed
PP Strapping Band Production Line: High-Efficiency, Cost-Saving Solution for Packaging Industry
Next, let us introduce Jiatuo's PP strapping production line.
Technical Parameters of PP 2straps output production machine
| 1 | Materials | Polypropylene PP raw material pellets, recycled pellets. |
| 2 | Product | PP strap (1 mould for 4straps) |
| 3 | Capacity | 230-260kg/h |
| 4 | Total install power | 100kw, (actual power consumption is 40-50%) |
| 5 | Strap width | 5mm-19 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 2person/shift |
| 8 | Workshop required | L (35m) ×W (2m) ×H (4m) |
| 9 | Power source | 380V, 50Hz, 3Phase (according to customer requirement) |
| 10 | Electric components | Schneider |
| 11 | Inverter | INVT |
| 12 | Switches | Fotek |
| 13 | Motor | GUGAO |
Core Advantages of JIATUO PP strap making machine
1. High Production Efficiency & Stable Performance
Equipped with advanced frequency conversion control systems and precision extrusion machines, the production line achieves a high output of 50-200kg/h (customizable according to requirements). The optimized mechanical structure ensures stable operation with low failure rates, reducing downtime and improving overall production efficiency. All key components are made of high-quality stainless steel and alloy materials, ensuring long service life and low maintenance costs.
2. Superior Product Quality
Adopting precise temperature control technology and multi-stage stretching processes, the produced PP strapping bands feature high tensile strength, good flexibility, and excellent impact resistance. They are not easy to break or deform, ensuring reliable packaging for heavy goods. The line supports uniform coloring and clear printing, with customizable patterns and logos to meet brand promotion needs.
3. Energy-Saving & Cost-Effective
The production line integrates energy-saving motors and heat recovery systems, reducing energy consumption by 15-20% compared to traditional equipment. It can use recycled PP granules as raw materials (with appropriate formula adjustment), effectively lowering raw material costs for customers. The automatic control system minimizes manual operation, saving labor costs and avoiding human errors.
4. Flexible Customization & Easy Operation
We provide tailored solutions based on customers' needs for strapping band width (3-25mm), thickness (0.5-2.0mm), and performance (standard, high-strength, lightweight). The intelligent touch screen control panel simplifies operation, with real-time monitoring of production parameters (temperature, speed, tension) and one-click adjustment, enabling workers to master the operation quickly without professional training.
5. Comprehensive Safety Protection
The line is equipped with multiple safety devices, including emergency stop buttons, over-temperature alarms, and overload protection, ensuring the safety of operators and equipment. The closed-type production structure prevents dust and noise pollution, complying with global environmental and safety standards.
Application: This machine can be used to meet the needs of cartons, tobacco, clothing, paper, electronics, wooden boxes, fruit, electrical (such as refrigerators, washing machines, color TV), food and other industries.This unit has the structure to be compact,the ease of operation ,the output are big, automatic higher merit.
Why choose us
1. The final straps can be packed automatically
2. We major in Strap Production Line for 30years
3. Always have sample machine in our workshop
4. Can take customers to see the running machines
5. Can test the machine for customers
