제품 상세 정보:
|
| 나사: | 한 개의 screw/ 쌍 스크루 | 나사 채널 구조: | 깊은 나사 |
|---|---|---|---|
| 오토메이션: | 오토매틱 | 전산화: | PLC 화면 터치 제어 시스템 |
| 모델: | JTPP-90 | 스크루 차원: | 90/100/110/125/150 밀리미터 |
| 수의 스트랩: | 2/3/4/6/8 | 제품 유형: | 돌출 몰딩 기계 |
| 인버터: | 투자 | 온도 제어: | 대만 포텍 |
| 생산능력: | 120-600kgs/h | 핵심 단어: | 플라스틱 포장 스트래핑 기계 |
| 등록 상표: | JIATUO | 너비: | 5-19mm |
| 두께: | 0.4-1.2mm | 생산 속도: | > 250m/분 |
| 강조하다: | PP strap making machine with automatic changer,single screw packing strap machine,5-19mm width PP strap maker |
||

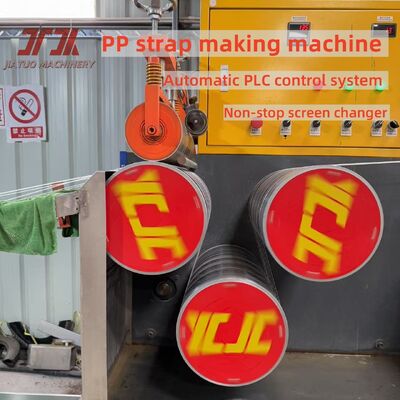

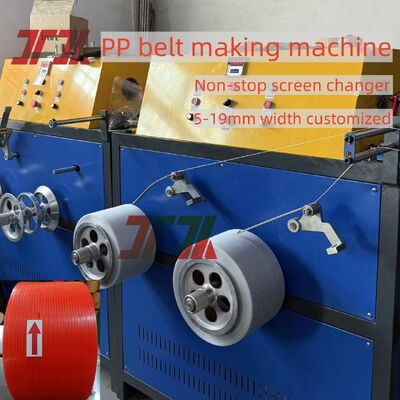

5-19mm Width PP Packing Strap Making Machine Single Screw With Automatic Changer
Description of PP strapping production line
2. Can utilize 100% virgin material, 100% recycled material, or a blend of virgin and recycled materials.
3. Features a hydraulic quick-change screen changer without stopping production.
4. Large CNC-controlled high-precision die head ensures continuous and stable production.
5. Capable of co-extruding 1 to 12 straps in a single pass to meet diverse customer requirements.
6. Winders are available in single-station or dual-station configurations.
Parameter of JIATUO PP strap making machine
| Type | JTPP-90 | JTPP-100 | JTPP-110 | JTPP-125 | JTPP-135 | JTPP-90/65 | JTPP110/75 |
| Strap of number | 2 | 3 | 4 | 6 | 8 |
2 Sandwich belt |
4 Sandwich belt |
| width | 5-19mm | 5-19mm | 5-19mm | 9-19mm | 9-19mm | 9-19mm | 9-19mm |
| Thickness | 0.4-1.2mm | ||||||
| Reducer mode | 200 | 200 | 225 | 250 | 280 | 200/173 | 225/173 |
| Screen changer | Automatic/ Manual | ||||||
| Production capacity | 80-120kg/H | 180-200kg/H | 220-250kg/H | 350-370kg/H | 460-500kg/H | 80-120kg/H | 180-200kg/H |
| Screw type | Single screw | Double screw | |||||

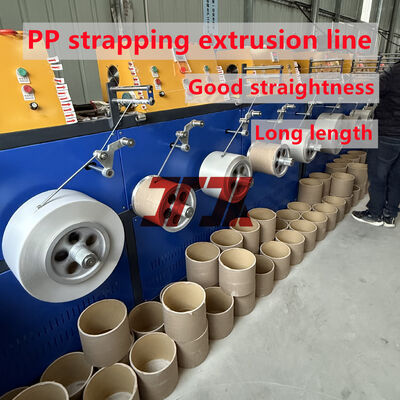

Feature of PP strap production line
Raw materials for production can utilize recycled materials or a blend of new and recycled materials to manufacture packaging straps. Calcium carbonate can also be added based on customer requirements to reduce production costs, enhance product profitability, and market competitiveness.
Our production line demonstrates high output, with a finished product line speed reaching up to 260-300 m/min.
Our machine's exterior has been optimized for an elegant, high-grade appearance, ensuring durability and long service life.
High-precision mold components guarantee stable product formation quality, with width and thickness variations significantly lower than national standards; the unique screen changing device substantially reduces screen replacement time.
The high-precision, premium-quality screw utilizes renowned brands and features unique parameter design, offering advantages such as high extrusion volume, excellent plasticization, superior hardness, and exceptional wear resistance.
Part of JIATUO PP belt making machine
Embossing Roller
This 38Crmoal materials, high surface hardness rollers do embossing
