제품 상세 정보:
|
| 제품 종류: | pp 스트랩 밴드 생산 라인 제작 기계 extruder | 스크루 설계: | 한 개이거나 두배인 단일 나사, 쌍 스크루 |
|---|---|---|---|
| 원료: | pp | 처리 유형: | 압출구 |
| 적용: | 시트, 스트랩, 파이프, 포장밴드, 테이프 및 스트랩 | 전압: | 220V-240V |
| 구동 방식: | 전기 | 자동화: | 오토매틱 |
| 보증: | 1년 | 판매 후 서비스 제공: | 해외에 있는 기계 서비스용 엔지니어 |
| 강조하다: | 자동 와인딩 PP 밴딩 스트랩 제조기,스트레이트 PP 밴딩 스트랩 제조기,200kg/H PP 밴딩 스트랩 제조기 |
||

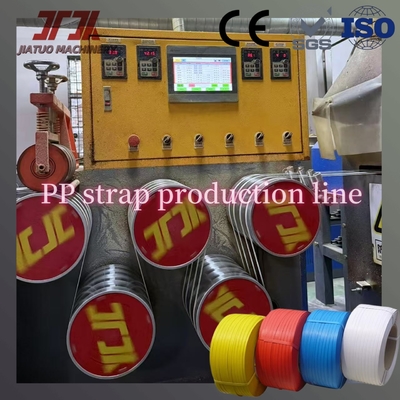

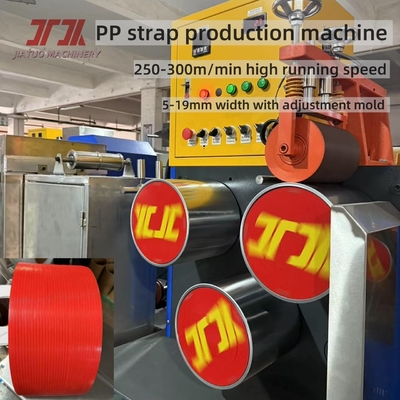

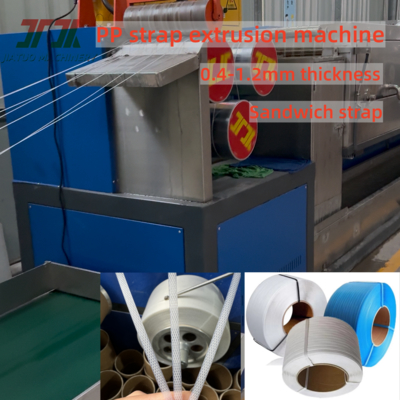

200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm
Product description of PP strap making machine
Automatic operation and labor saving, High production, Reasonable drive system and unique oven. Energy saving
Safety, environment protection and economy, Produce lighter weight straps
Produce manual and automatic machine straps, Extrusion capacity: 100kg / h or 250kg / h or 350kg / h 400kg / h
Straps specification: 5-19mm Width,0.4-1.2mm Thickness.
Parameter of PP 2strap output making machine
| Model | PP-90 | PP-100 |
| Extruder model | JT-90 | JT-100 |
| Raw materials | PP pellet,recycled material | PP pellet,recycled material |
| Extrusion quantity | 2 | 4 |
| Product width(mm) | 5-19mm | 5-19mm |
| Product thickness(mm) | 0.4-1.2mm | 0.4-1.2mm |
| Capacity extruder(kg/h) | 100-120kg/H | 230-260kg/H |
| Line speed(m/min) | 250-300m/min | 250-300m/min |
| Total power(kw) | 60 | 90 |
| Length production line(m) | 26 | 28 |
| Materials cool water tank | stainless steel | stainless steel |
Feature of PP belt production line
1. PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2.Utilizing the 100% recycled material as raw materials that reducing the cost to a great extent;
3.With the multi-purpose machine, produce the PP straps in different specifications directly and don not need to change the mould head;
Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock
4.resistance are up to the international grade;
5.Low Energy consumption, but high production capability;
6.Easy to operate, save the manpower and two persons for one production line on average.

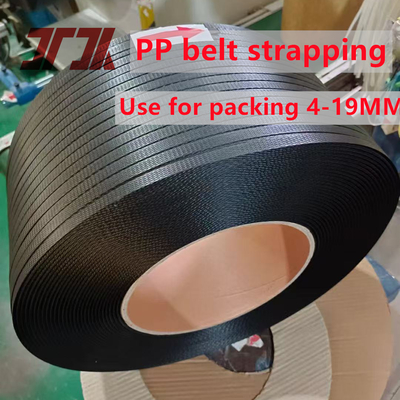

Application of PP strapping
FAQ
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm.
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw.
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm.
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw.
